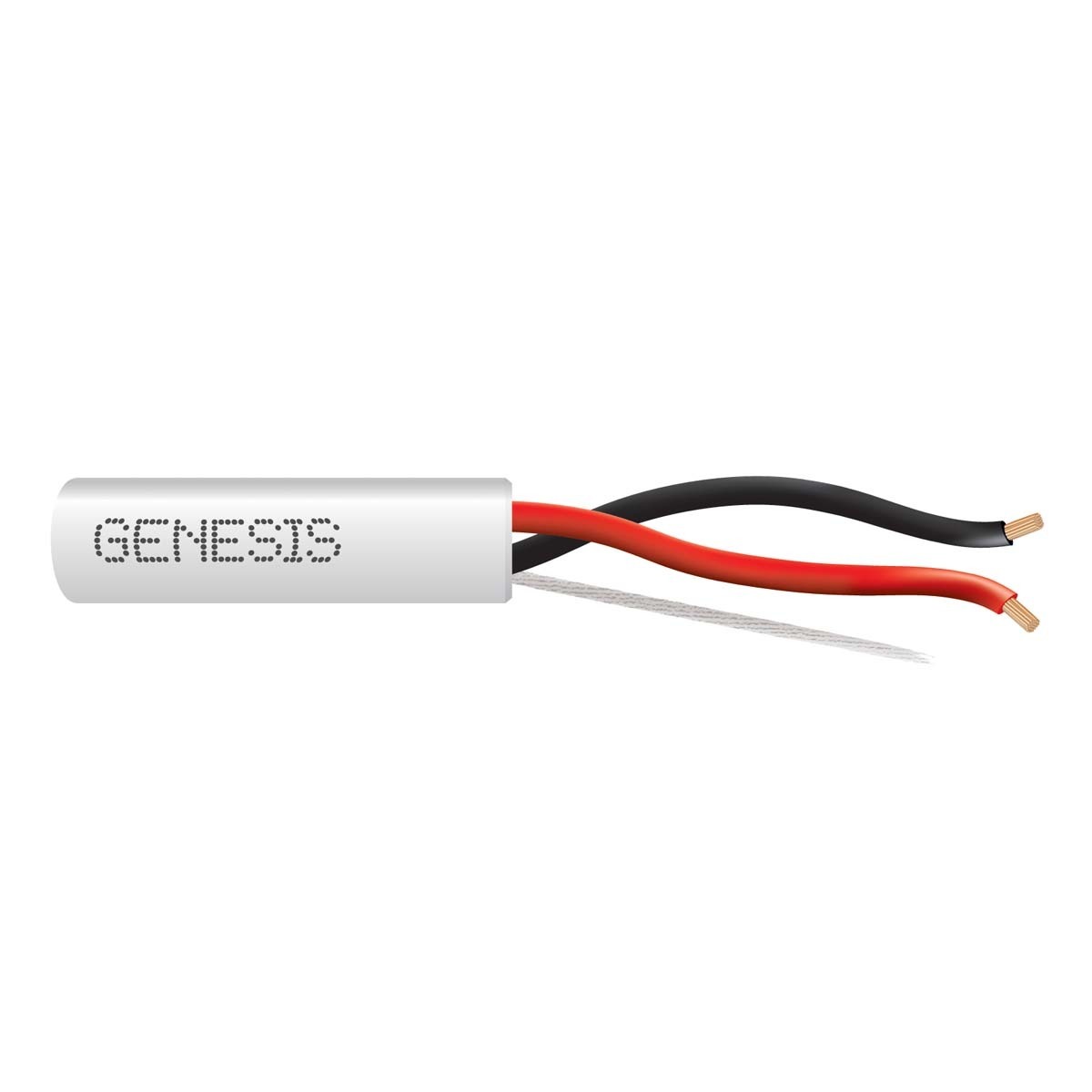

Home Theater Sound Cable, Riser

16-26 2/C CU HTS CMR WHITE GEN 1000 FT

N° Southwire : 52501101

Contactez-nous
Télécharger les spécifications de la catégorie
PDF Tableau Excel
Sélectionnez les spécifications du produit
Construction
Couleur de la jaquette externe / l’armure
NOIR
BLEU
VERT
VIOLET
BLANC
JAUNE
Format

Application & Features

Genesis® Riser Rated Home Theater Sound Cable is suitable for installation as follows:

  • Installed in a metal raceway that complies with 300.22(B).
  • Supported by solid bottom metal cable trays with solid metal covers.
  • In risers.
  • Within buildings in other than air-handling spaces and risers.
  • Exposed to sunlight.

Spécifications

Taille (AWG or kcmil) (mm2) Calibre 16 AWG Calibre 16 AWG
Nombre de conducteurs 2 2
Torons Toronné Toronné
Shielding Non blindé Non blindé
Poids nominal total (lbs/1 000 pi) (kg/km) 23 34 lbs/1 000 pi kg/km

Normes et références

Genesis® Riser Rated Home Theater Sound Cable meets or exceeds the following:

  • UL 1666 - Riser Rated
  • CSA C22.2 No. 2556 - FT4 Rated
  • UL 444 - Communication Cables, Type CMR
  • UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
  • UL 13 - Power-Limited Circuit Cables, Type CL3R
  • Sunlight Resistant Rated
  • conforme aux normes REACH/RoHS.

Construction

Genesis® Riser Rated Home Theater Sound Cable features the following quality and convenience characteristics:

  1. Bare Copper conductors for excellent conductivity and low voltage drop.
  2. Polypropylene insulation.
  3. PVC jacket.
  4. Durable rip cord for efficient jacket stripping and removal.
  5. Countdown® Length Markings for easy tracking of usage and remaining cable.
  6. Rated for 300 Volts
  7. Rated for -20 °C to 60 °C.
