Home Theater Sound Cable, Riser

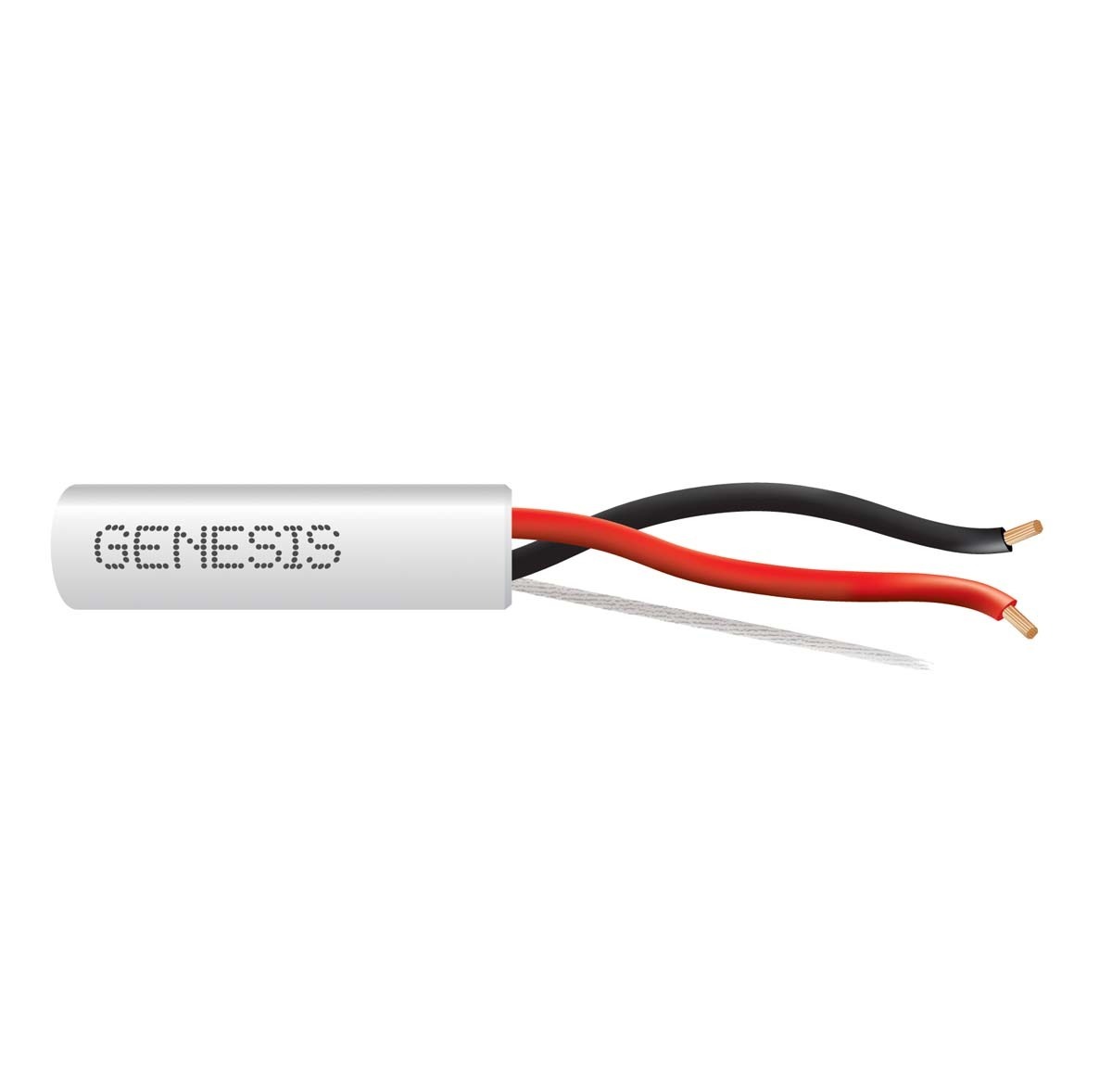

14-41 2/C CU HTS CMR WHITE GEN 500 FT

N° Southwire : 52525501

Télécharger les spécifications de la catégorie

PDF Tableau Excel

Sélectionnez les spécifications du produit

Construction

Couleur de la jaquette externe / l’armure

NOIR

VERT

BLANC

JAUNE

Format

Application & Features

Genesis® Riser Rated Home Theater Sound Cable is suitable for installation as follows:

Installed in a metal raceway that complies with 300.22(B).
Supported by solid bottom metal cable trays with solid metal covers.
In risers.
Within buildings in other than air-handling spaces and risers.
Exposed to sunlight.

Spécifications

Taille (AWG or kcmil) (mm2)	Calibre 14 AWG Calibre 14 AWG
Nombre de conducteurs	2 2
Torons	Toronné Toronné
Shielding	Non blindé Non blindé
Poids nominal total (lbs/1 000 pi) (kg/km)	34 51	lbs/1 000 pi kg/km

Normes et références

Genesis® Riser Rated Home Theater Sound Cable meets or exceeds the following:

UL 1666 - Riser Rated
CSA C22.2 No. 2556 - FT4 Rated
UL 444 - Communication Cables, Type CMR
UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
UL 13 - Power-Limited Circuit Cables, Type CL3R
Sunlight Resistant Rated
conforme aux normes REACH/RoHS.

Construction

Genesis® Riser Rated Home Theater Sound Cable features the following quality and convenience characteristics:

Bare Copper conductors for excellent conductivity and low voltage drop.
Polypropylene insulation.
PVC jacket.
Durable rip cord for efficient jacket stripping and removal.
Countdown® Length Markings for easy tracking of usage and remaining cable.
Rated for 300 Volts
Rated for -20 °C to 60 °C.

Ressources

Genesis Entertainment Brochure
